- نوع دوربین IP و مدل آن اسپیددام (Speed Dome)
- رزولوشن تصویر: 2 مگاپیکسل (1080P)
- زوم اپتیکال: 45 برابر (45x Optical Zoom)
- میزان دید در شب: 300 متر
- درجه محافظت: IP67
- پشتیبانی از PoE: دارد (Power over Ethernet)

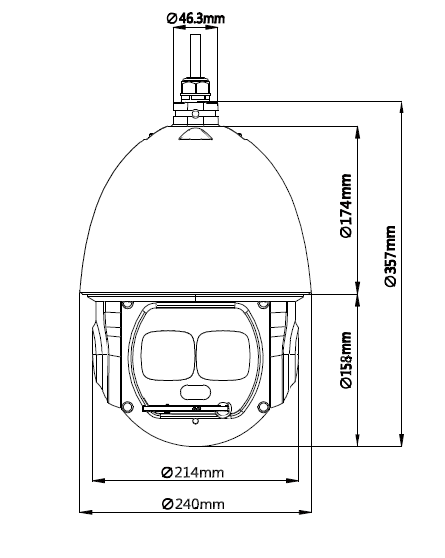

دوربین داهوا مدل DH-SD6AL245U-HNI
توضیحات
| Image Sensor | 1/2.8″ STARVIS™ CMOS | ||
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels | ||
| RAM/ROM | 1024M/128M | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | 1/1s~1/30,000s | ||
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6;0Lux@F1.6 (IR on) | ||
| S/N Ratio | More than 56dB | ||
| IR Distance | Distance up to 300m (984ft) | ||
| IR On/Off Control | Auto/Manual | ||
| IR LEDs | 1 | ||
| Wiper | Support | ||
| Lens | |||
| Focal Length | 3.95mm~177.7mm | ||
| Max. Aperture | F1.6~ F4.95 | ||
| Angle of View | H: 70.3° ~ 1.8° | ||
| Optical Zoom | 45x | ||
| Focus Control | Auto/Manual | ||
| Close Focus Distance | 100mm~ 1000mm | ||
| DORI Distance | |||
| *Note: The DORI distance is a “general proximity” of distance which makes it easy topinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. |
|||
| Detect | Observe | Recognize | Identify |
| 2345m(7694ft) | 938m(3077ft) | 469m(1539ft) | 234m(768ft) |
| PTZ | |||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -20° ~ 90°,auto flip 180° | ||
| Manual Control Speed | Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s | ||
| Preset Speed | Pan: 240° /s; Tilt: 200° /s | ||
| Presets | 300 | ||
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan | ||
| Speed Setup | Human-oriented focal Length/ speed adaptation | ||
| Power up Action | Auto restore to previous PTZ and lens status afterpower failure | ||
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is nocommand in the specified period | ||
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | ||
| Intelligence | |||
| Event Trigger | Motion detection, Video tampering , Scenechanging, Network disconnection, IP address
conflict, Illegal Access, Storage anomaly |
| Auto Tracking | Support |
| IVS | Tripwire, Intrusion, Abandoned/Missing |
| Advanced Intelligent Functions | Face Detection, Heat Map |
| Video | |
| Compression | H.265+/H.265/H.264+/H.264 |
| Streaming Capability | 3 Streams |
| Resolution | 1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate | Main stream: 1080P/1.3M/720P(1~50/60fps) |
| Sub stream1: D1/CIF(1 ~ 25/30fps) | |
| Sub stream2: 1080P/1.3M/720P/D1/CIF(1~25/30fps) | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| Backlight Compensation | BLC / HLC / WDR(120dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Motion Detection | Support |
| Region of Interest | Support |
| Electronic Image Stabilization(EIS) | Support |
| Defog | Support |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas |
| Audio | |
| Compression | G.711a/G.711Mu/AAC/G.722/G.726/G.729/MPEG2-L2 |
| Network | |
| Ethernet | RJ-45 (10Base-T/100Base-TX) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x |
| Interoperability | ONVIF Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users |
| Edge Storage | NAS (Network Attached Storage),Local PC forinstant recording, Micro SD card 256GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
