دوربین داهوا مدل DH-HAC-HFW1500TLMP-IL-A-0280B-S2
توضیحات
Camera
Image Sensor 5 MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Min. Illumination
0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance IR: 40 m (131.23 ft)
Warm Light: 40 m (131.23 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (Warm light);2 (IR light)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View 2.8 mm: H: 106°; V: 56°; D: 125°
3.6 mm: H: 92°; V: 48°; D: 109°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)
DORI
Distance
Lens Detect Observe Recognize Identify
2.8 mm 56 m
(183.73 ft)
22.4 m
(73.49 ft)
11.2 m
(36.75 ft)
5.6 m
(18.37 ft)
3.6 mm 76 m
(249.34 ft)
30.4 m
(99.74 ft)
15.2 m
(49.87 ft)
7.6 m
(24.93 ft)
Video
Video Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 ×
1080); 960H (960 × 576/960 × 480)
Day/Night Auto(ICR)/Color/B/W
BLC BLC; HLC; DWDR
WDR DWDR
White Balance Auto; Area white balance
www.dahuasecurity.com
Gain Control Auto/Manual
Noise Reduction 2D NR
Illumination Mode Smart IR&WL; WL Mode; IR Mode
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Audio Input One channel built-in mic
Power
Power Supply 12 VDC ± 30%
Power Consumption Max 4.5 W (12 VDC, WLED on)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity <95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity <95% (RH), non-condensing
Protection IP67

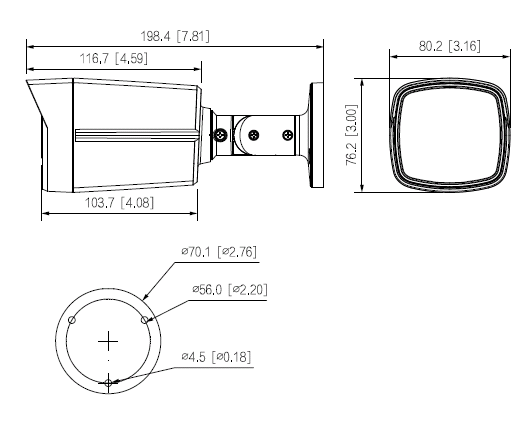

Structure
Image Sensor 5 MP CMOS
Max. Resolution 2880 (H) × 1620 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s
Min. Illumination
0.05 lux@F1.6 (Color, 30 IRE)
0.005 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance IR: 40 m (131.23 ft)
Warm Light: 40 m (131.23 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (Warm light);2 (IR light)
Angle Adjustment
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6
Field of View 2.8 mm: H: 106°; V: 56°; D: 125°
3.6 mm: H: 92°; V: 48°; D: 109°
Iris Control Fixed
Close Focus Distance 2.8 mm: 0.8 m (2.62 ft)
3.6 mm: 1.3 m (4.27 ft)
DORI
Distance
Lens Detect Observe Recognize Identify
2.8 mm 56 m
(183.73 ft)
22.4 m
(73.49 ft)
11.2 m
(36.75 ft)
5.6 m
(18.37 ft)
3.6 mm 76 m
(249.34 ft)
30.4 m
(99.74 ft)
15.2 m
(49.87 ft)
7.6 m
(24.93 ft)
Video
Video Frame Rate
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 ×
1080); 960H (960 × 576/960 × 480)
Day/Night Auto(ICR)/Color/B/W
BLC BLC; HLC; DWDR
WDR DWDR
White Balance Auto; Area white balance
www.dahuasecurity.com
Gain Control Auto/Manual
Noise Reduction 2D NR
Illumination Mode Smart IR&WL; WL Mode; IR Mode
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Certification
Certifications
CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one
BNC port
Audio Input One channel built-in mic
Power
Power Supply 12 VDC ± 30%
Power Consumption Max 4.5 W (12 VDC, WLED on)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity <95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity <95% (RH), non-condensing
Protection IP67
Structure
